Name: US Swimming Pool Sales 2024 Presents Exquisitely Crafted Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor in United States.
SKU: AW50A 620158
Price: 99.99 USD
Availability: InStock

New

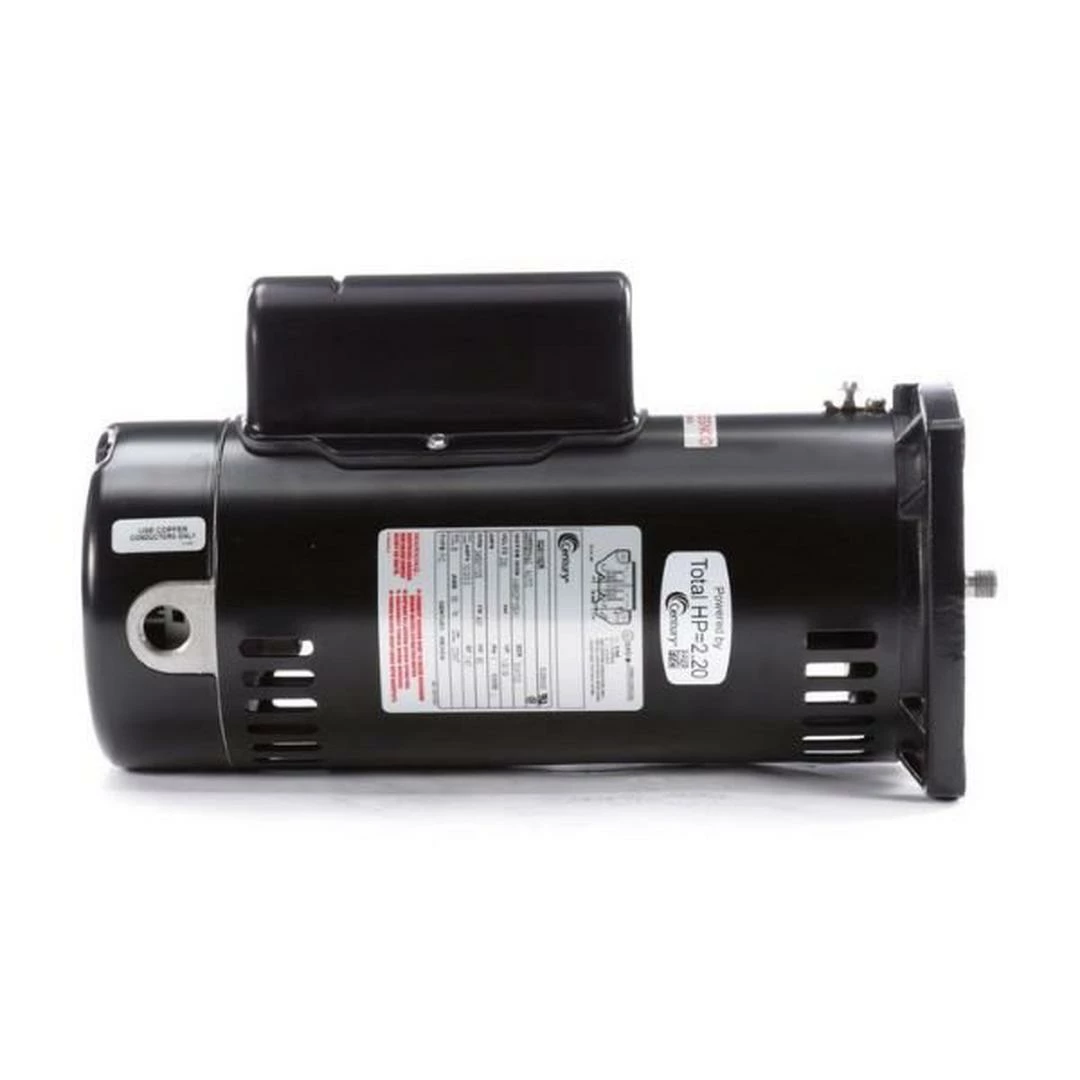

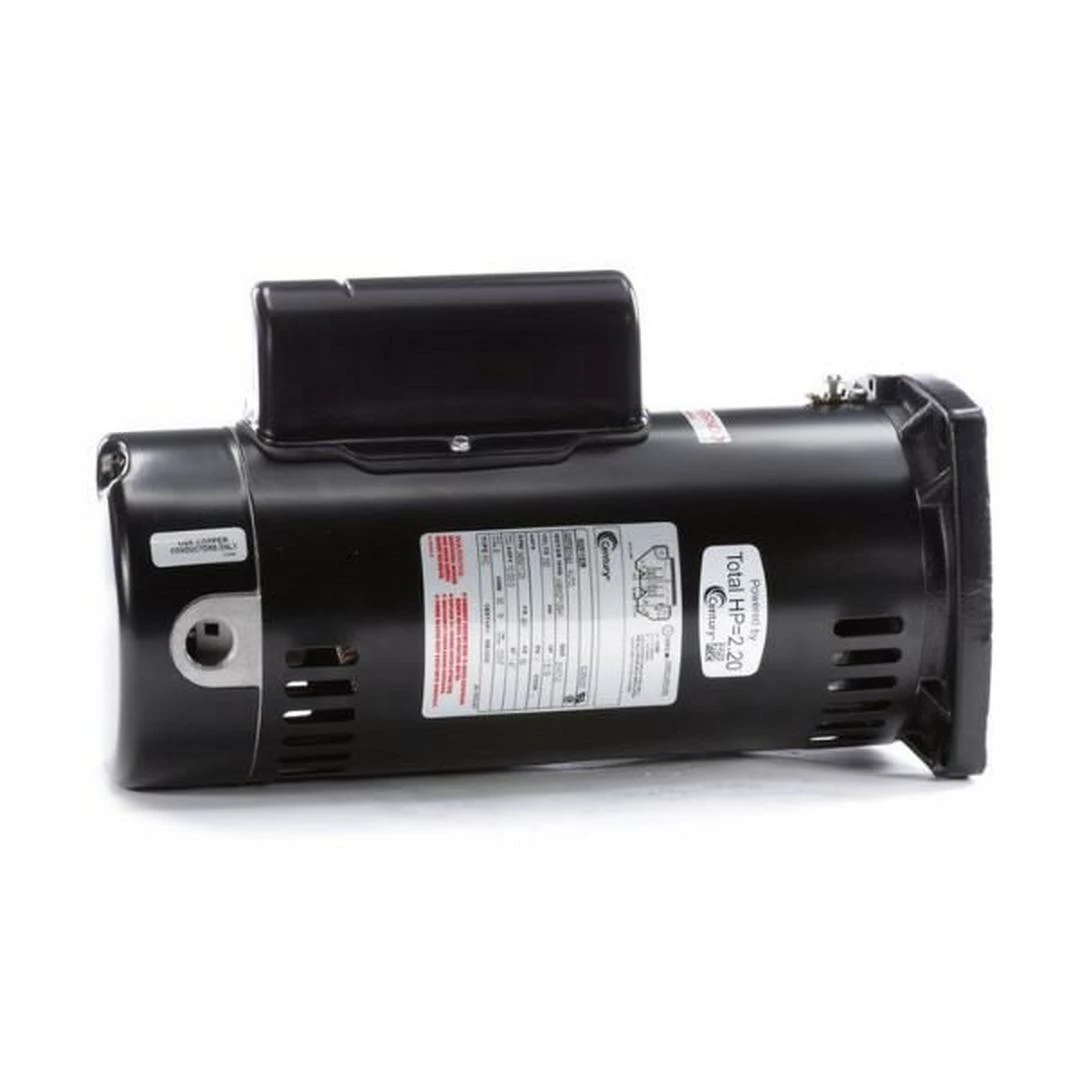

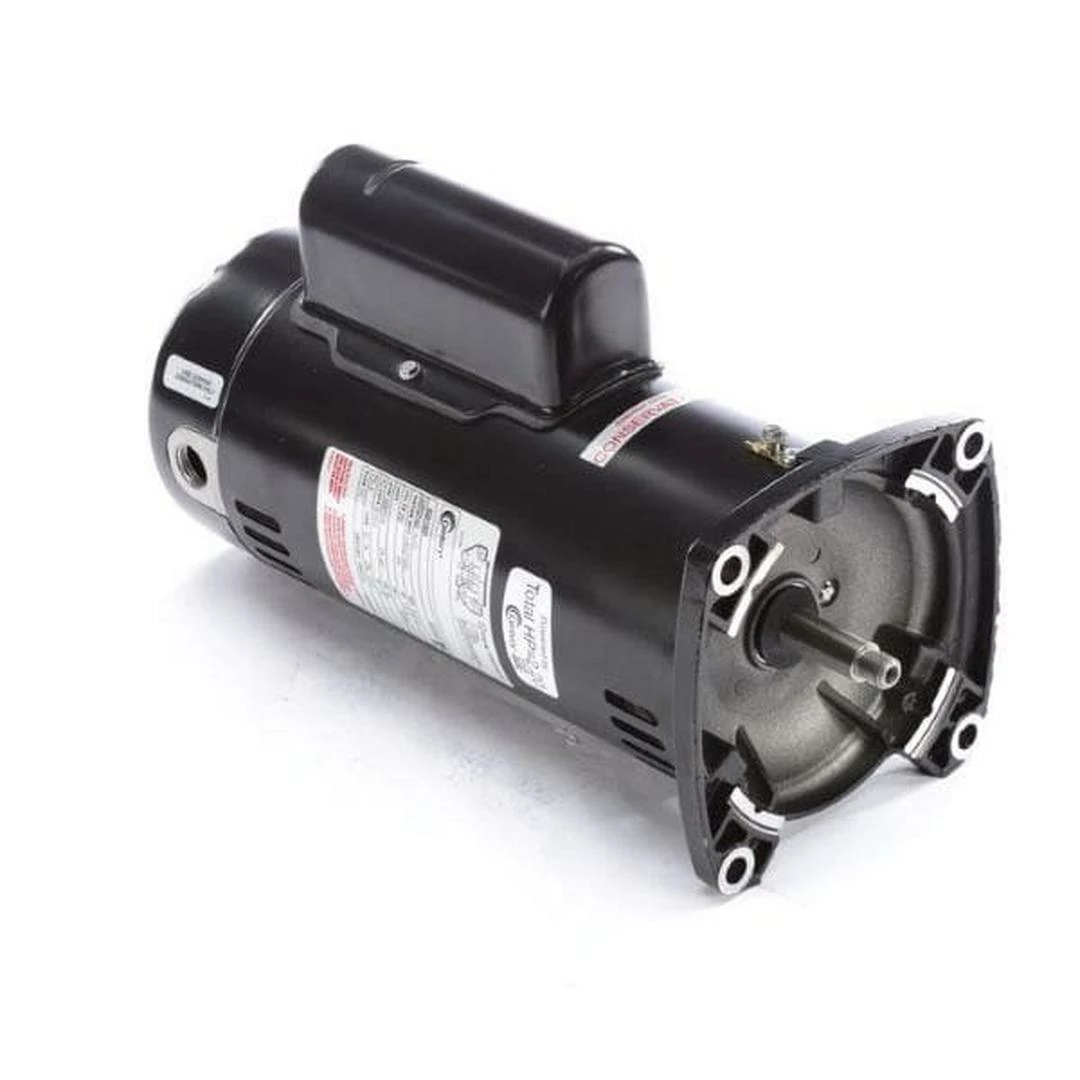

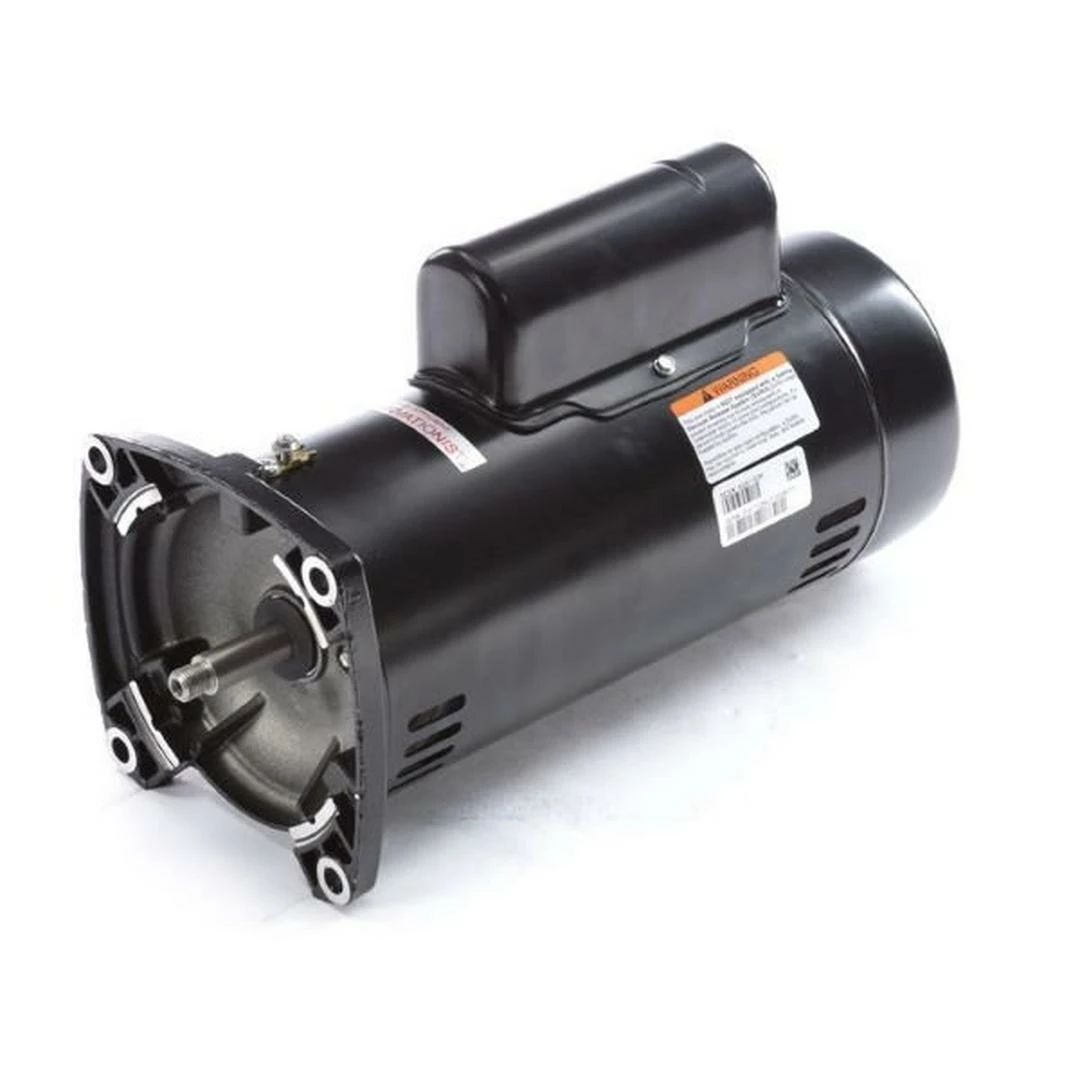

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 2

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 3

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 4

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 5

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 6

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 7

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor - Image 8

Century A.O. Smith - 48Y Square Flange 1-1/2 Or 1/4 HP Dual Speed Full Rated Pool And Spa Pump Motor -US Swimming Pool Sales 2024 4 HP Dual Speed Full Rated Pool and Spa Pump Motor 1

$99.99

SKU: AW50A 620158 Categories: Dual Speed Pump Motors, Pool Pump Motors

No Compromise on Quality
Have the best deals
High quality products, hassle-free returns.
The home of quality products.

Description
Reviews (0)

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design.

All Copper Windings
Auto Protector – Single Speed
Open Dripproof
Rotation: CCW Pump End
Class B Insulation
303 Stainless Steel Threaded Shaft
50C Ambient
60 Hertz
Capacitor Start Low Speed, PSC High Speed
UL1081
10.0/3.0A 230V

The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.

Flange Type:	Square Flange
Service Factor:	1.25 – 1.50
Installation Type:	Residential
Pool Type:	Spa/Hot Tub
Voltage:	230V
Phase Type:	Single Phase
Shaft Type:	Threaded
Speed Settings:	Dual Speed
Horsepower:	1-1/2 or 1/4 HP
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	48 Frame
Energy Efficiency:	Standard
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
