$99.99
- No Compromise on Quality
- Have the best deals
- High quality products, hassle-free returns.
- The home of quality products.
- Threaded shaft
- Ball Bearings
- 50 C Ambient
- 60 Hertz
- Class B Insulation
- Rotation: CCW Pump End
- 304 Bearing Shaft End

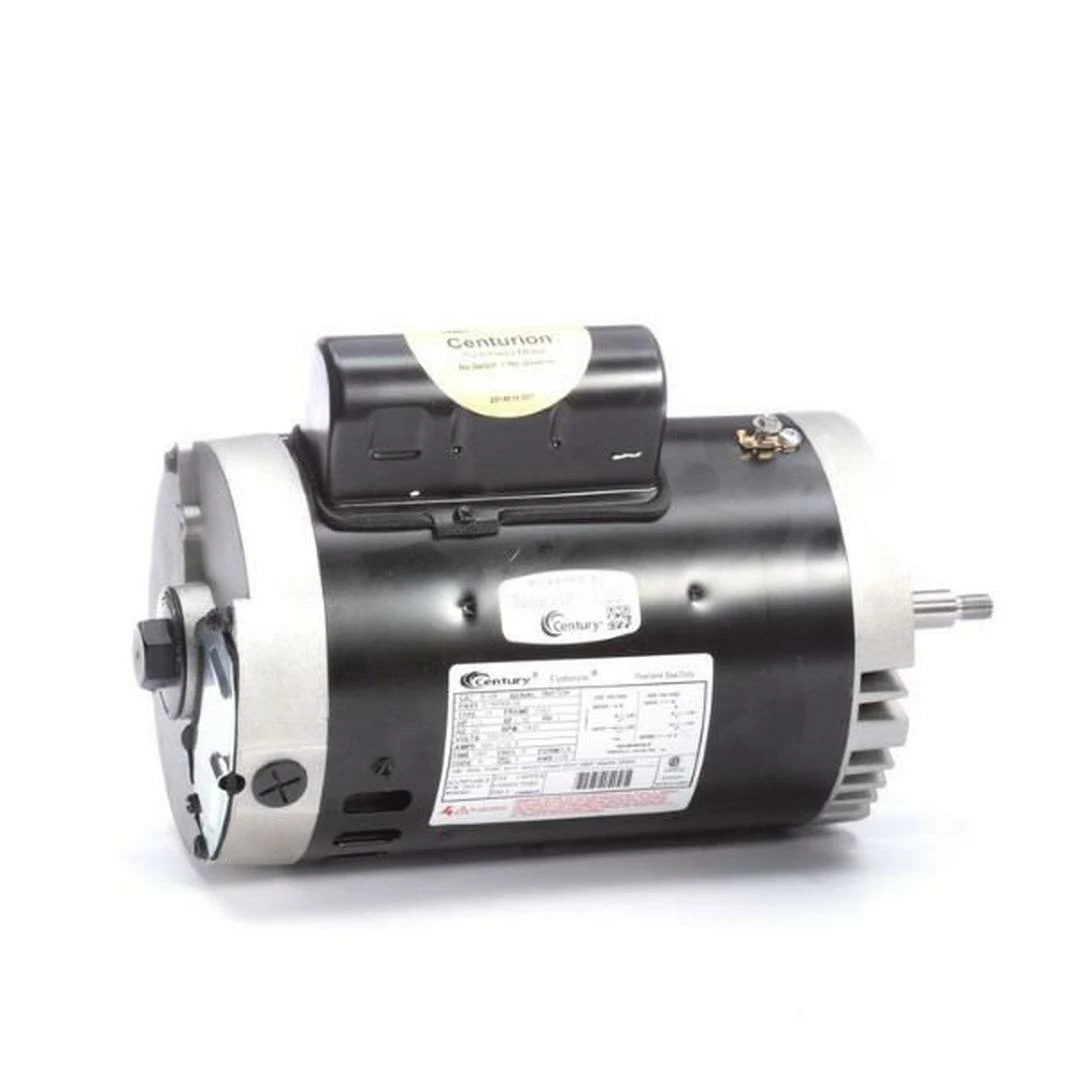

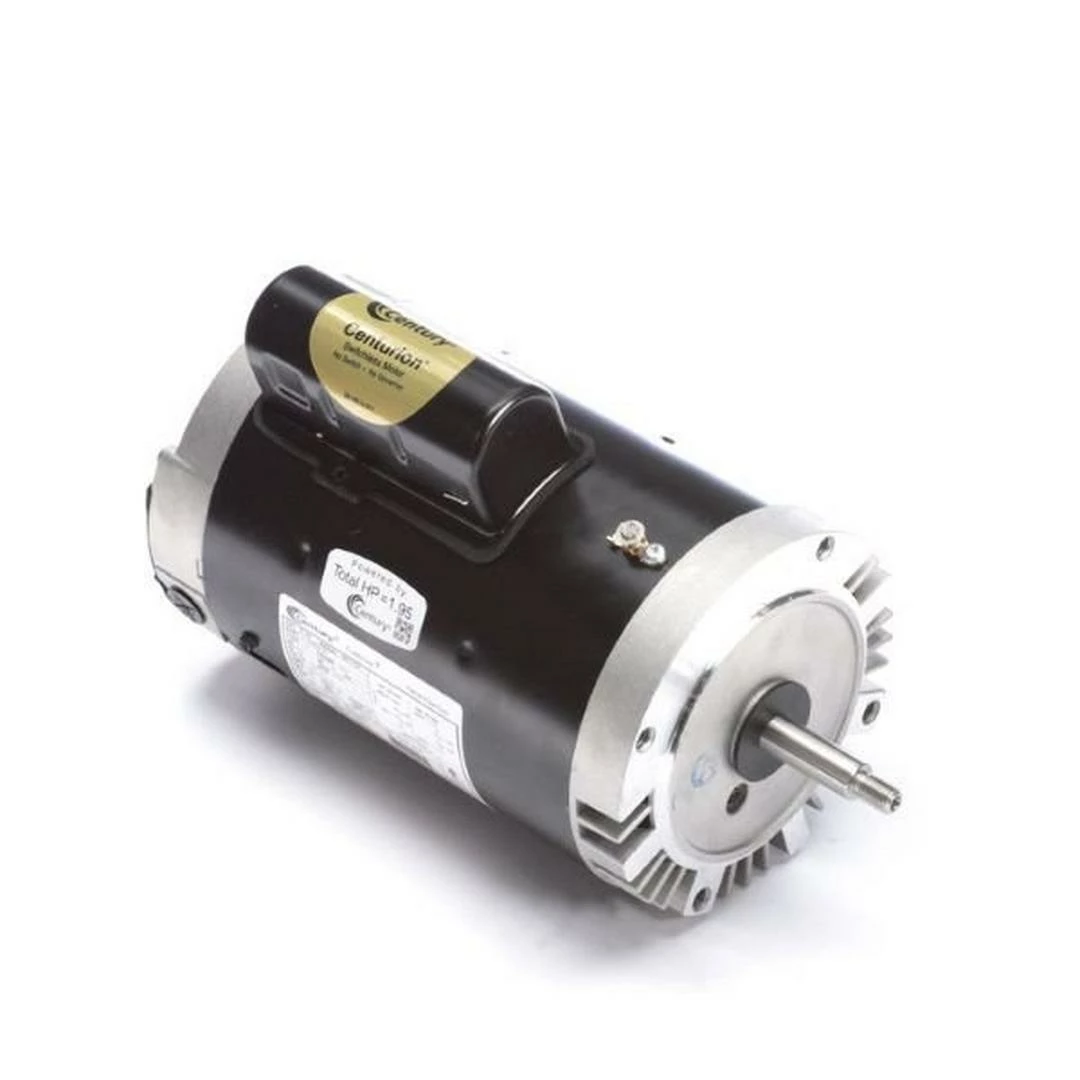

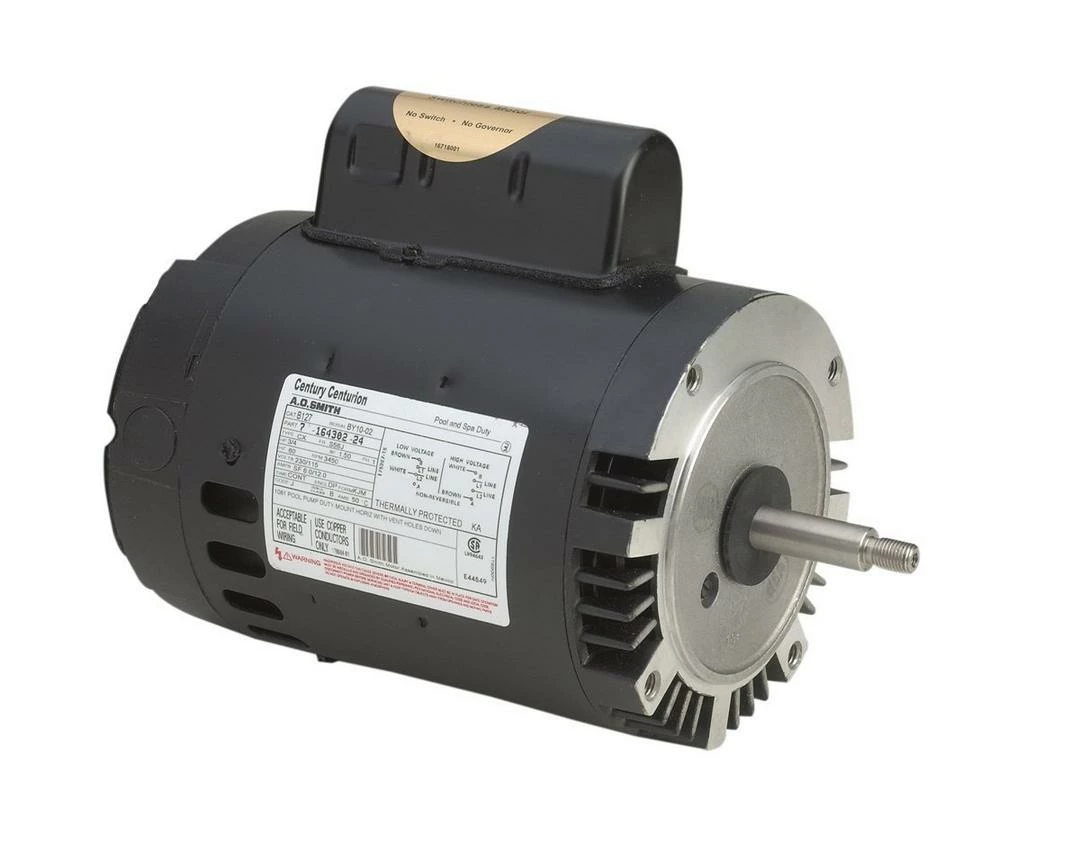

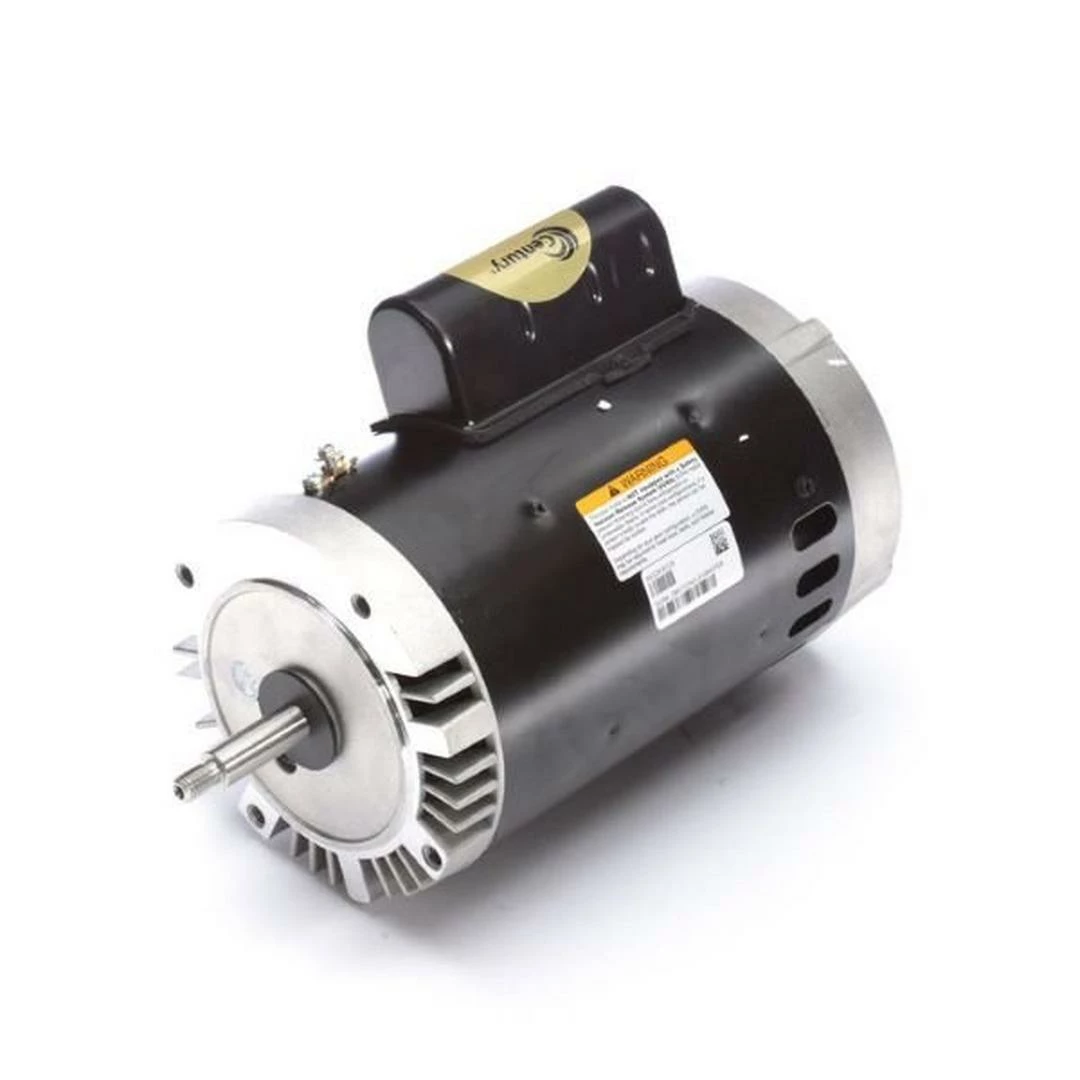

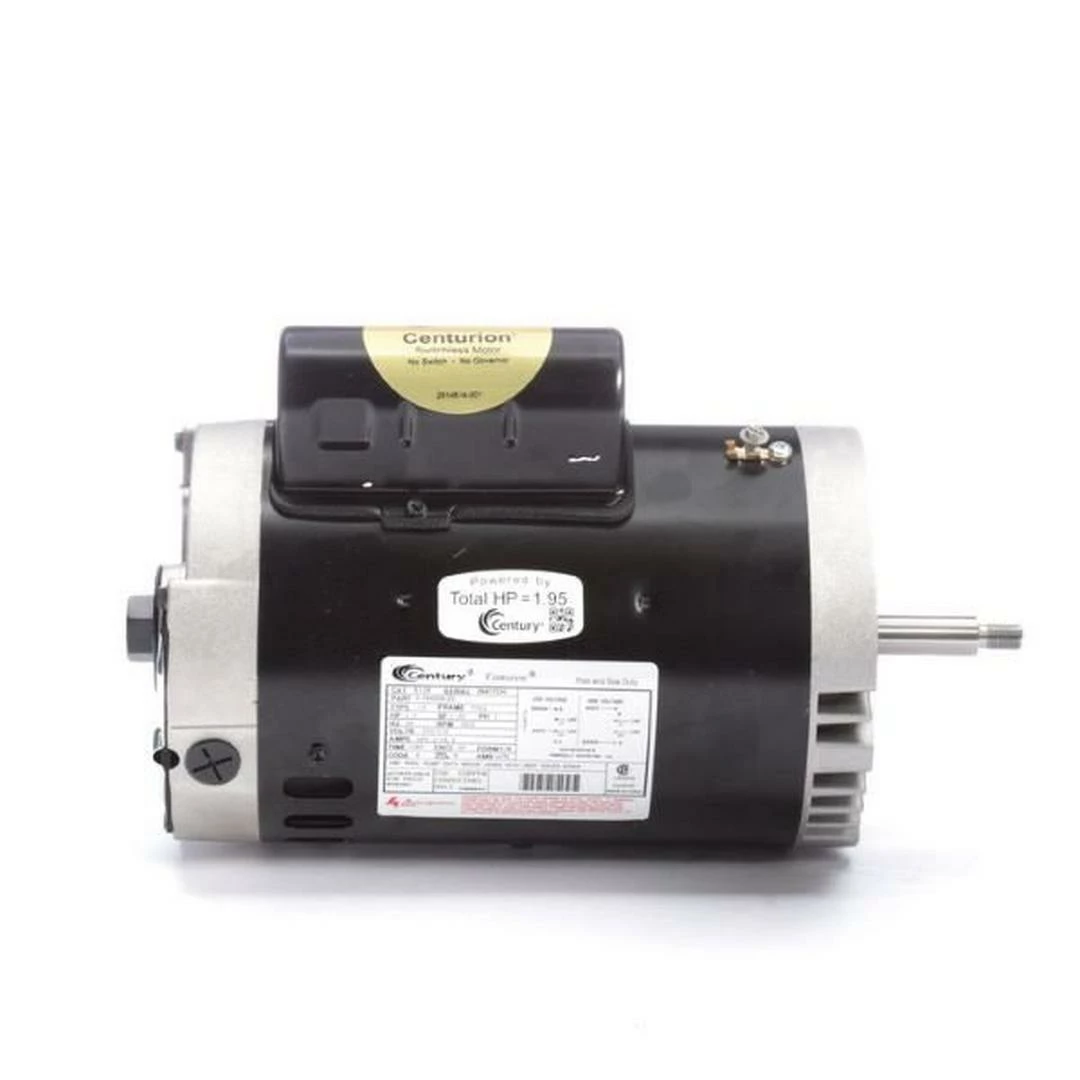

The Century C-Face Pool and Spa Pump Motor is a single-phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA-C brackets. Equipped with an auto overload protector, a stainless steel shaft, and ball bearings, the Century C-Face Pool and Spa Pump Motor provide long-lasting operation. Available in Full and Up-Rated models ranging from 1/2″P to 3HP, it delivers high performance.
| Installation Type: | Residential |
| Flange Type: | J Flange |
| Service Factor: | 1.25 – 1.50 |
| Shaft Type: | Threaded |
| Phase Type: | Single Phase |
| Speed Settings: | Single Speed |
| Voltage: | 240V |
| Pool Type: | Spa/Hot Tub |
| Horsepower: | 1-1/2 HP |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Compatible Pumps: | SHPF1.5 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
