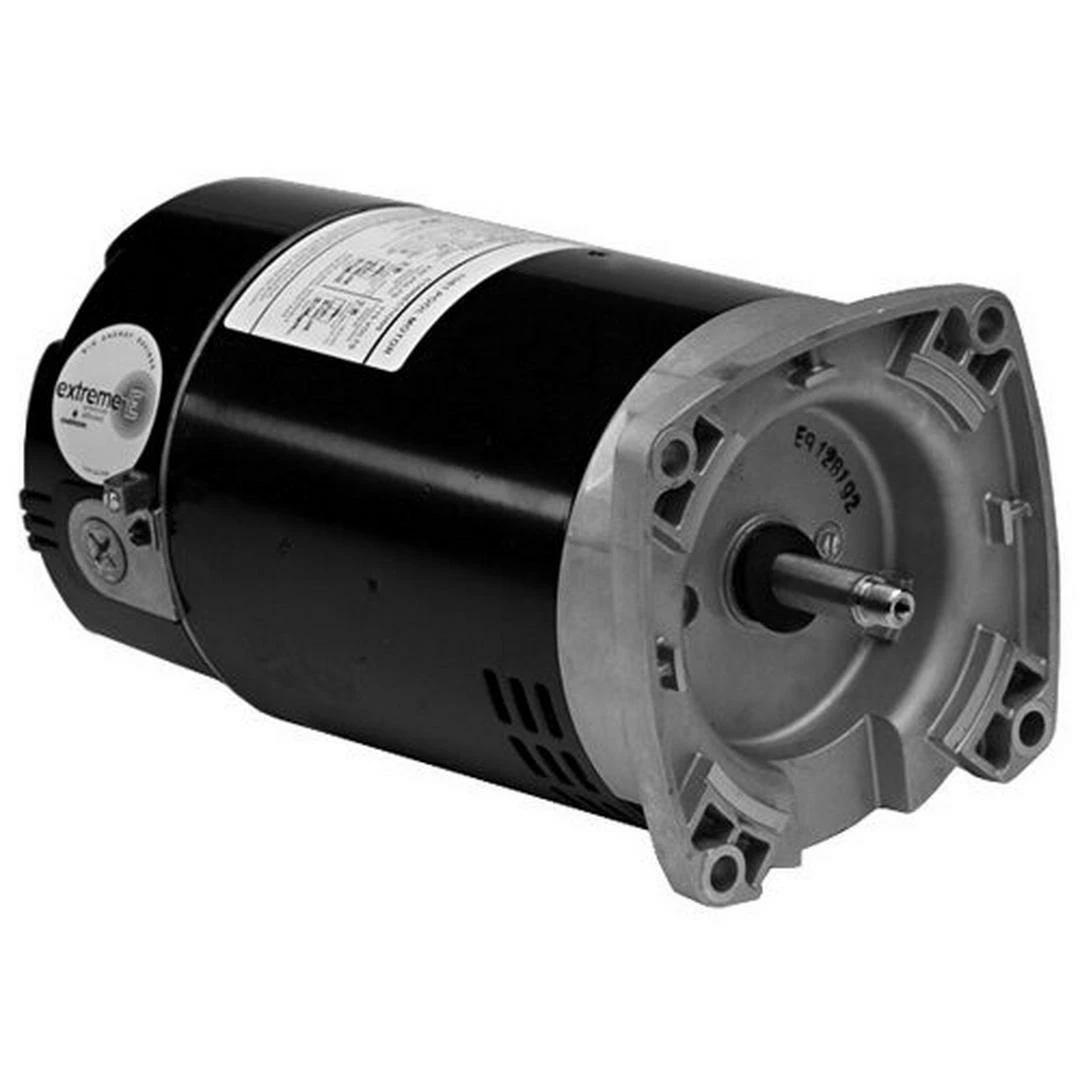

Century A.O. Smith – Emerson ASB661 Square Flange Single Speed 3/4HP Full Rated 56Y Pump Motor

U.S. Motor Emerson ASB661 Square Flange Single Speed 3/4HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long-lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip-proof enclosure that keeps water from flowing into the motor and its rear-mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 3/4 HP rating deliver optimum performance.

Flange Type:	Square Flange
Voltage:	120V / 240V
Voltage:	115V / 208 – 230V
Service Factor:	1.50 – 1.75
Motor Frame:	56Y Frame
Energy Efficiency:	High Energy Efficiency
Speed Settings:	Single Speed
Horsepower:	3/4 HP
Pool Type:	In Ground
Rating Type:	Full-Rated
Product Type:	Pool Motor
Manufacturer:	U.S. Motors Emerson
Product Type:	Pool Pump
Pump Speed:	Single
Service Factor:	1.65
Total Horsepower:	1.24 THP
