$98.99
- No Compromise on Quality
- Have the best deals
- High quality products, hassle-free returns.
- The home of quality products.
- Replacement Motor for Polaris PB4-60 Pump
- Ball Bearings
- CW Non-Reversible
- Aluminum Adapter Bracket
- 40 C Ambient
- 303 Stainless Steel Shaft
- 60 Hertz
- Class B Insulation
- 1081 Features
- Note: Motor may ship without top capacitor depending upon current design.
- Note: Manufacturer may differ depending on warehouse inventory.

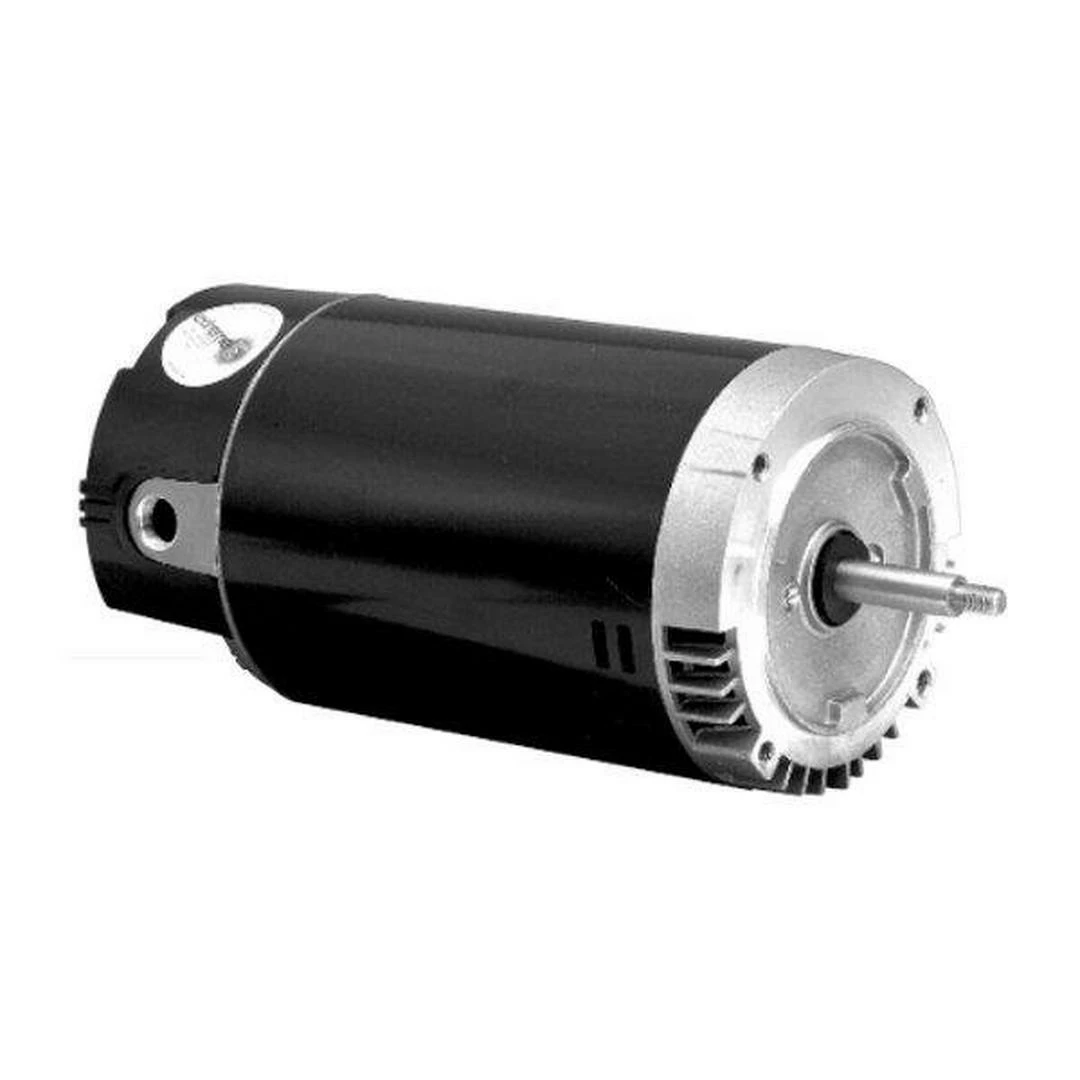

The U.S. Motors ASB625 C-Face 3/4 HP Full Rated 56CZ 115V/230V Pool and Spa Pump Motor is a powerfully designed replacement motor.
Similar to spa and pool replacement motors, the U.S. Motors 56 CZ-Frame Motor is a two-compartment model with a voltage selection device, running at 3/4HP and 115V/230V. It is Class B-insulated for efficient operation and has been designed with both sealed ball bearing sand triple bearing protection. The U.S. Motors booster pump replacement motor has an open drip proof design for water damage prevention and is thermally protection.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
| Speed Settings: | Single Speed |
| Shaft Type: | Threaded |
| Service Factor: | 1.25 – 1.50 |
| Horsepower: | 3/4 HP |
| Flange Type: | C Flange |
| Phase Type: | Single Phase |
| Service Factor: | 1.50 – 1.75 |
| Voltage: | 120V / 240V |
| Installation Type: | Residential |
| Voltage: | 115V / 230V |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Product Type: | Pool Motor |
| Warranty: | 1-Year |
| Pump Speed: | Single |
| Service Factor: | 1.5 |
| Total Horsepower: | 1.13 THP |
| Manufacturer: | U.S. Motors |
